Straight hole ceramic filter is used to improve and enhance the quality of aluminum, copper, ductile iron, grey iron, tough iron castings. For the quality of castings such as steel, the straight-hole ceramic filter can achieve the following effects through in-mold filtration : purifying molten metal, removing non-metallic impurities and gases ; make the metal liquid filling stable and reduce the vortex ; simplify the gating system and improve the process yield ; reduce the porosity of castings, optimize and refine the metal structure ; improve the surface quality and mechanical properties of castings ; reduce the rejection rate of castings ; reduce processing allowance and improve tool life, reduce casting costs. The straight hole ceramic filter produced by our company has high filtration efficiency, good thermal shock resistance and high temperature strength, and can withstand the extreme environment in the casting process. The materials of the straight hole ceramic filter produced by our company mainly include cordierite, mullite, zirconium mullite, zirconium corundum, etc.

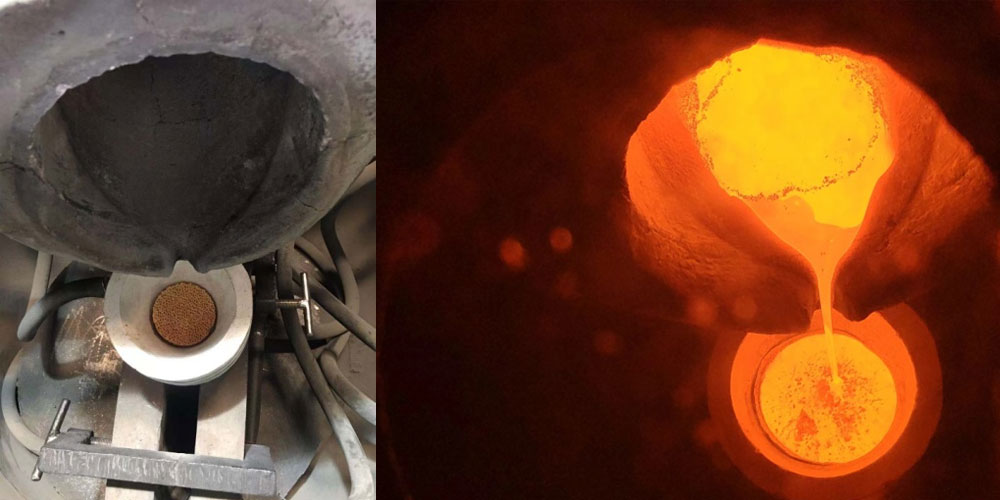

In-plant simulation testing of filter sheets for cast steel use scenarios.

Pouring temperature: 1680℃

Common specifications :

Specification ( mm )	Hole shape	Diameter	Number of holes (mm)	Hole opening rate ( % )
100×100×（20）	Square	2.2×2.2	33×33=1089	52.7
100×100×（20）	Square	2.5×2.5	31×31=961	60.06
100×100×（20）	Square	3.0×3.0	24×24=576	51.84
81×81×（12.5）	Square	1.46×1.46	44×44=1936	62.89
75×75×（15）	Square	2.2×2.2	26×26=676	58.17
75×75×（15）	Circular	Φ2.5	492	42.94
120×65×（20）	Square	2.2×2.2	38×20=760	47.16
100×65×（20）	Square	2.2×2.2	33×21=693	51.6
100×60×（12.5）	Square	2.2×2.2	33×20=660	53.29
100×50×（20）	Square	1.6×1.6	50×24=1200	61.44
66×66×（12.5）	Square	1.2×1.2	42×42=1764	58.31
66×66×（12.5）	Square	1.46×1.46	37×37=1369	66.99
66×66×（12.5）	Square	2.2×2.2	26×26=676	75.11
66×66×（12.5）	Circular	Φ2.4	440	45.7
60×60×（20）	Square	1.6×1.6	29×29=841	59.8
60×60×（15）	Square	2.2×2.2	20×20=400	53.78
55×55×（12.5）	Circular	Φ2.3	367	50.41
55×55×（12.5）	Square	2.2×2.2	21×21=441	70.56
55×55×（12.5）	Square	1.15×1.15	37×37=1369	59.85
50×50×（12）	Square	2.2×2.2	19×19=361	69.89
50×50×（12.5）	Circular	Φ2.3	294	48.86
40×40×（10）	Circular	Φ2.2	172	40.86
40×40×（10）	Square	1.4×1.4	22×22=484	59.29
Φ90×（12.5）	Square	2.2×2.2	696	52.95
Φ60×（10）	Square	1.44×1.44	502	36.82
Φ50×（10）	Circular	Φ2.3	109	23.06

More
Product performance

Bulk density (g/cm)	0.7~1.8	Thermal shock resistance (800℃ water cooling)	>5 times
Compressive strength (Mpa)	>15	Flexural strength (Mpa)	1.3-1.6
Expansion coefficient (20-1000℃)	<5×10-6 k-1	Load softening temperature 1500℃	1500℃

High strength, good thermal shock resistance, reduce cracking in the casting process
Good filtration effect, can filter and adsorb the tiny inclusions in the molten metal liquid.
Unique rectification effect, so that the liquid metal from the vegetative flow into a smooth laminar flow, to prevent the entry of air bubbles.
High-precision external dimensions, fully suitable for automated production line applications, can reduce production costs.
Product parameter

Size （mm）	Filter diam.（mm）	Porosity（%）	Maximum filter weight (kg)		Flow rate (kgisec)
			Gray cast iron	Ductile cast iron	Gray cast iron	Ductile cast iron
40*40	φ2.5	60	45-70	30-40	3-4	1-2
50*50	φ2.2	58	60-85	20-30	3-5	2-3
	φ2.5	60	80-100	25-50	5-6	3-4
55*55	φ2.5	61	85-150	30-74	6-10	3-5
60*60	φ2.5	60	120-210	45-90	8-12	4-6
66*66	φ2.5	61	140-150	48-95	9-13	5-7
75*75	φ2.5	61	160-280	55-100	11-14	7-9
80*80	φ2.5	61	250-330	60-120	12-18	8-14
100*100	φ3.0	62	300-388	158-205	20-25	13-16
125*125	φ3.0	62	320-550	200-400	28-35	15-20
133*133	φ3.8	63	750-960	250-550	40-60	35-55
150*150	φ3.8	63	800-1000	480-600	90-120	50-85
φ40	φ1.5	57	30-40	25-30	2-3	1-2
	φ1.5	59	35-65	30-40	3-4	2-3
φ50	φ2.5	60	55-80	35-45	2-5	2-4
φ70	φ2.5	60	70-100	50-65	6-12	4-7
φ80	φ2.8	61	75-110	70-90	10-16	9-12
φ100	φ2.5	60	100-250	95-150	18-22	10-15
